Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Interface
48 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity
Fanless
Physical Security Lock
No
Power Supply
100-240VAC, 50/60Hz
Power Consumption
Maximum: 9.9W
Dimensions ( W x D x H )
17.3*7.1*1.7 in. (440*180*44 mm)
Mounting
Rack Mountable
Max Power Consumption
9.9W(220V/50Hz)
Packet Forwarding Rate
7.14Mpps
Switching Capacity
9.6Gbps
MAC Address Table
8K
Transfer Method
Store-and-Forward
Advanced Functions
Green Technology 802.3X Flow Control
Green Technology
Innovative energy-efficient technology saves power up to 50%
Package Contents

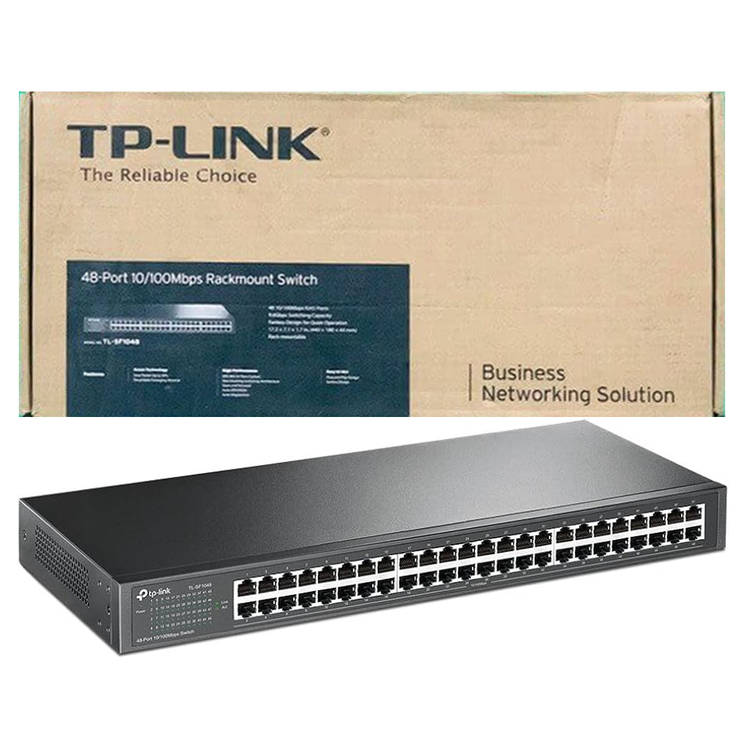

48-Port 10/100Mbps Rackmount Switch Power Cord Installation Guide Rackmount Kit Rubber Feet
System Requirements
Microsoft® Windows® XP, Vista™, Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux.
Environment
Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing
